| Số lượng đặt hàng tối thiểu : | 1 mảnh | Giá bán : | please feel free to contact |
|---|---|---|---|
| chi tiết đóng gói : | Bơm chìm với sự hấp thụ sốc, gói chống ẩm, vỏ gỗ xuất khẩu tiêu chuẩn | Thời gian giao hàng : | 7-15 ngày làm việc sau khi xác nhận thanh toán |
| Điều khoản thanh toán : | T/T, Liên minh phương Tây, L/C, D/A, D/P, Moneygram | Khả năng cung cấp : | 10000 mảnh mỗi tháng |
| Nguồn gốc: | Henan, Trung Quốc | Hàng hiệu: | APK |
|---|---|---|---|
| Chứng nhận: | CE, ISO9001 | Số mô hình: | Máy bơm chìm 10 inch |
|
Thông tin chi tiết |
|||
| Chảy: | 46m3/h-240m3/h bơm chìm | Cái đầu: | 12m-430m |
|---|---|---|---|
| Đường kính: | Máy bơm chìm 10 inch | Quyền lực: | 5,5kW-125kW |
| Điện áp: | 380V/440V/480V/600V/660V hoặc theo yêu cầu | Tính thường xuyên: | 3 pha/50Hz 60Hz |
| Động cơ: | Động cơ AC | Vật liệu: | Gang/SS304/SS316/SS316L/DUPLEX/SS904L |
| Bảo hành chất lượng: | 24 tháng | ODM OEM: | Chấp nhận |
| Làm nổi bật: | stainless steel submersible borehole pump,custom submersible water pump 55kW-220kW,high flow submersible pump 80-1000m³/h |
||
Mô tả sản phẩm

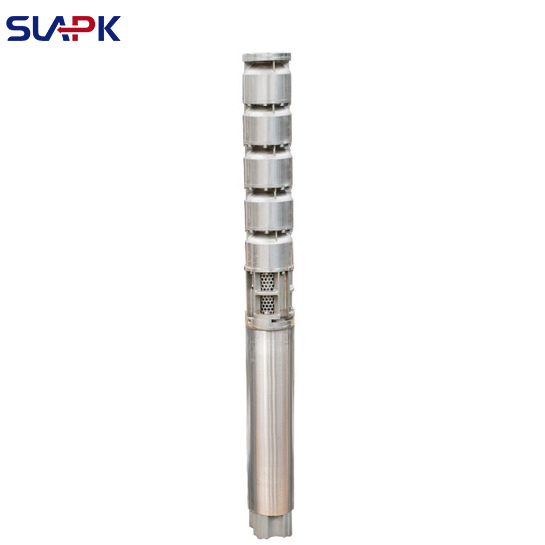

55kW–220kW Custom Submersible Water Pumps 80–1000m³/h Flow 80–400m Head Stainless Steel Borehole Pumps OEM/ODM
Looking for a Reliable, High-Performance Submersible Borehole Pump?
Our high-power submersible pumps deliver exceptional performance with flow rates from 80 to 1000m³/h and heads up to 80–400 meters, making them ideal for deep well, borehole, mine dewatering, and large-scale water supply systems.
Customization Available – We welcome OEM/ODM orders!
Stainless Steel Construction – 304/316 options for corrosion resistance
Global Voltage Support – 380V, 415V, 480V, 660V, 1140V, 50Hz/60Hz
Worldwide Shipping – From China to your project site
Key Features & Benefits
High Efficiency & Energy Saving
Key Features & BenefitsHigh Efficiency & Energy Saving
Advanced hydraulic design and high-efficiency motor ensure optimal performance and lower operating costs over the pump’s lifetime.
Wide Flow & High Head Range
Flow Rate: 80 – 1000 m³/h
Total Head: 80 – 400 meters
Perfect for deep boreholes, high-rise buildings, and industrial transfer systems.
Premium Stainless Steel Build (304/316)
Corrosion-resistant materials ensure long service life in freshwater, seawater, and mildly aggressive environments. Ideal for harsh conditions.
Robust Motor Design
Power Range: 55kW – 220kW (75HP – 300HP)
IP68 Waterproof Rating
F-Class Insulation
Continuous duty submersible motor for 24/7 operation
Fully Customizable Solutions
We offer full customization to meet your exact project requirements:
Custom flow & head performance curves
Special materials (316L, duplex steel)
Cable length, connector type, and phase options
Non-standard flanges, voltages, or mounting dimensions
CAD drawings, pump curves, and technical support provided
Rigorous Quality Control
Every pump undergoes 24-hour continuous testing, pressure testing, and vibration analysis before shipment. Compliant with international standards.
Certifications & Compliance
Available with CE, ISO 9001, and test reports upon request. Suitable for EU, North America, Africa, Middle East, and Asia markets.
Typical Applications
Deep well & groundwater extraction
Mine dewatering & drainage systems
Municipal water supply & high-rise building pressure boosting
Large-scale irrigation & agricultural pumping
Industrial cooling, circulation & process water
Geothermal & heat pump systems
Construction site dewatering & foundation drainage
|
Diameter |
Model |
Power |
Flow range |
Head range |
|
|
Inch (") |
QJ type |
kw |
hp |
m3/h |
m |
|
10" |
250QJ50-20/1 |
5.5 |
7 |
46-54 |
17-23 |
|
10" |
250QJ50-60/3 |
15 |
20 |
46-54 |
51-69 |
|
10" |
250QJ50-120/6 |
30 |
40 |
46-54 |
102-138 |
|
10" |
250QJ50-200/10 |
45 |
60 |
46-54 |
170-230 |
|
10" |
250QJ50-240/12 |
55 |
75 |
46-54 |
204-276 |
|
10" |
250QJ50-300/15 |
63 |
85 |
46-54 |
265-335 |
|
10" |
250QJ50-340/17 |
75 |
100 |
46-54 |
315-375 |
|
10" |
250QJ50-380/19 |
90 |
120 |
46-54 |
350-410 |
|
10" |
250QJ50-400/20 |
100 |
135 |
46-54 |
365-430 |
|
10" |
250QJ63-40/2 |
11 |
15 |
58-68 |
34-46 |
|
10" |
250QJ63-60/3 |
18.5 |
25 |
58-68 |
51-69 |
|
10" |
250QJ63-120/6 |
37 |
50 |
58-68 |
100-138 |
|
10" |
250QJ63-160/8 |
45 |
60 |
58-68 |
130-184 |
|
10" |
250QJ63-260/13 |
75 |
100 |
58-68 |
220-299 |
|
10" |
250QJ63-300/15 |
90 |
120 |
58-68 |
205-343 |
|
10" |
250QJ80-20/1 |
7.5 |
10 |
74-86 |
17-23 |
|
10" |
250QJ80-140/7 |
55 |
75 |
74-86 |
118-163 |
|
10" |
250QJ80-200/10 |
75 |
100 |
74-86 |
170-230 |
|
10" |
250QJ80-240/12 |
90 |
120 |
74-86 |
204-276 |
|
10" |
250QJ80-280/14 |
110 |
150 |
74-86 |
235-325 |
|
10" |
250QJ100-36/2 |
15 |
20 |
80-120 |
32-42 |
|
10" |
250QJ100-72/4 |
30 |
40 |
80-120 |
64-84 |
|
10" |
250QJ100-144/8 |
63 |
85 |
80-120 |
120-168 |
|
10" |
250QJ100-216/12 |
100 |
135 |
80-120 |
190-252 |
|
10" |
250QJ125-16/1 |
9.2 |
13 |
116-134 |
13-19 |
|
10" |
250QJ125-128/8 |
75 |
100 |
116-134 |
109-147 |
|
10" |
250QJ125-192/12 |
110 |
150 |
116-134 |
163-220 |
|
10" |
250QJ140-180/12 |
125 |
170 |
130-145 |
156-205 |
|
10" |
250QJ160-15/1 |
13 |
18 |
148-172 |
12-18 |
|
10" |
250QJ160-90/6 |
63 |
85 |
148-172 |
77-103 |
|
10" |
250QJ160-105/7 |
75 |
100 |
148-172 |
90-120 |
|
10" |
250QJ160-120/8 |
90 |
120 |
148-172 |
102-138 |
|
10" |
250QJ160-135/9 |
100 |
135 |
148-172 |
115-155 |
|
10" |
250QJ160-150/10 |
110 |
150 |
186-214 |
128-170 |
Why Choose Us?
40 Years of Pump Manufacturing Expertise
Direct Factory Prices – No Middlemen
Fast Response – 24-Hour Technical Support
OEM/ODM Service with Branding Options
Engineering Support – Free Selection & Design Help
