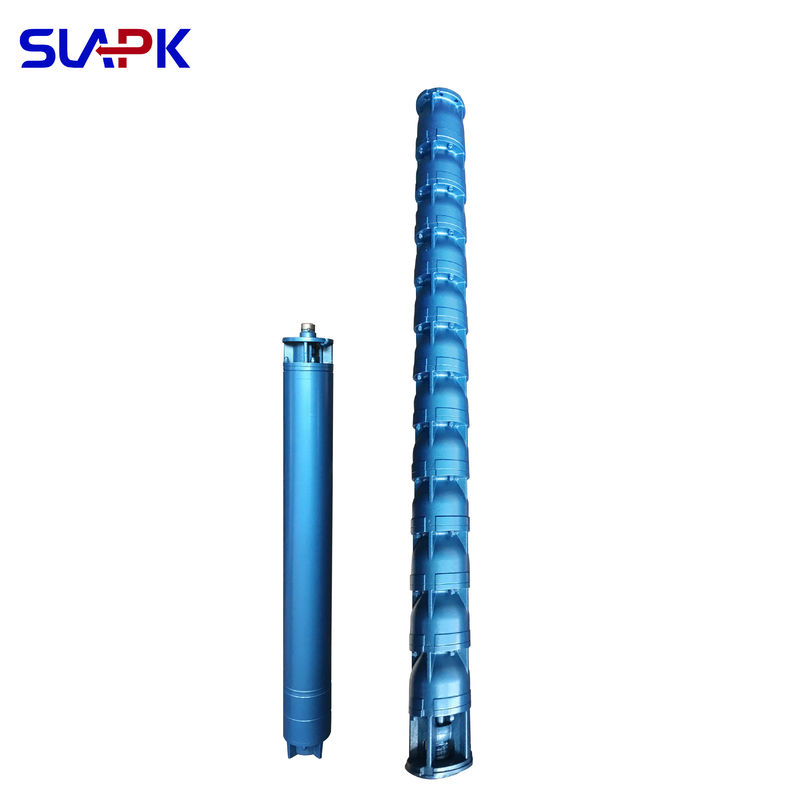

High-Head Submersible Deep Well Pump 90m³/h Flow 120m Head Rural Irrigation Free Pump Selection Assistance

Mô tả sản phẩm

High-Head Submersible Deep Well Pump 90m³/h Flow 120m Head Rural Irrigation Free Pump Selection Assistance

Are you managing a rural irrigation project that demands reliable water delivery from deep wells or boreholes?
If your system requires a high-head submersible pump capable of delivering 90 m³/h at a 120-meter head, you’re in the right place. At SLAPK, we offer free, expert pump selection assistance to ensure your agricultural water supply is efficient, cost-effective, and sustainable.

Why High-Head Capability Matters for Rural Irrigation

In many rural and remote farming regions, groundwater sources lie deep underground—often beyond 80 meters. Standard pumps simply can’t lift water efficiently from such depths while maintaining adequate flow rates. A high-head submersible deep well pump is engineered specifically for these demanding conditions:

Delivers water over long vertical distances without losing pressure

Maintains consistent flow even under high static and dynamic head

Reduces energy waste through optimized hydraulic design

For large-scale irrigation covering hectares of farmland, a pump rated for 120m head and 90m³/h flow strikes the ideal balance between power and efficiency.

Here’s what to expect from a pump matching your requirements:

✅ Technical Specifications

Flow Rate: 90 m³/h (±10% tolerance)

Total Head: Up to 120 meters

Motor Power: Typically 30–37 kW (40–50 HP), 3-phase AC

Voltage: 380V / 50Hz (customizable for regional grids)

Pump Type: Multistage centrifugal, oil-filled or water-cooled motor

Materials:

Casing: Stainless steel 304/316 or duplex 2205 for corrosion resistance

Shaft: Stainless steel (SS316 or higher)

Impeller: Engineering plastic (POM) or stainless steel, depending on water quality

✅ Design Advantages

Sand-resistant construction for wells with high sediment content

IP68 waterproof rating for continuous submersion

Thermal overload protection to prevent motor burnout

Modular design for easy maintenance and part replacement

Free Pump Selection Assistance – Tailored to Your Project

Every farm, well depth, pipeline layout, and crop type presents unique hydraulic challenges. That’s why we provide complimentary pump selection support, including:

Site condition analysis (well depth, static/dynamic water levels, pipe length & diameter)

Performance curve matching to avoid under- or over-sizing

Energy consumption estimation to optimize operational costs

Material recommendation based on water chemistry (e.g., saline, acidic, or high-chloride groundwater)

Just share your project details with us, and our engineers will recommend the most suitable pump model.

Real-World Applications

Our recommended high-head pumps are already in use across:

Large vegetable farms in Southeast Asia

Vineyards and orchards in arid regions of Africa and the Middle East

Government-led rural water schemes in South America and India

These systems reliably deliver water day after day—even in harsh environments—thanks to robust engineering and quality materials.

Get Your Custom Recommendation Today

Don’t gamble on irrigation performance. A mismatched pump leads to low yield, high electricity bills, and frequent breakdowns.

Contact us now for free pump selection assistance!

Provide your:

Well depth & water level

Required daily water volume

Distance from well to field

Power availability (grid/solar)

We’ll respond within 24 hours with a tailored pump solution, complete with performance curves, pricing, and delivery options.
