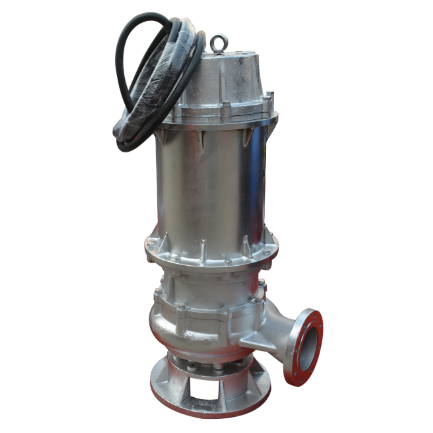

The 100WQ100-25-11KW Stainless Steel Submersible Sewage Pump is designed for industrial wastewater transfer, municipal sewage systems, construction drainage, and demanding liquid handling applications.
Featuring an 11KW three-phase motor, 100m³/h flow rate, 25m head, 1450RPM speed, and 400V 50Hz power supply, this submersible sewage pump provides a practical solution for projects requiring corrosion resistance, stable operation, and non-clogging performance.
Compared with conventional cast iron sewage pumps, stainless steel construction offers better suitability for humid, saline, and industrial wastewater environments. The non-clogging impeller design helps reduce blockage risks caused by suspended solids and fibrous materials.
The 100WQ100-25-11KW pump uses stainless steel wetted components for challenging water conditions.
Suitable media include:
Advantages:
SS304, SS316, and SS316L options can be selected according to project conditions.
Wastewater systems often contain:
Traditional pumps may experience blockage issues during operation.
The non-clogging impeller design helps provide:
Suitable for sewage lifting, wastewater discharge, and industrial drainage systems.
Motor specifications:
The three-phase motor configuration matches common industrial power systems.
The 1450RPM design supports smooth operation for wastewater transfer applications.
Submersible sewage pumps require reliable sealing and protection because they operate underwater.
The pump features:
IP68 protection is suitable for:
| Item | Specification |
|---|---|
| Model | 100WQ100-25-11KW |
| Pump Type | Stainless Steel Submersible Sewage Pump |
| Flow Rate | 100 m³/h |
| Head | 25 m |
| Motor Power | 11 KW |
| Speed | 1450 RPM |
| Voltage | 400V |
| Frequency | 50Hz |
| Power Supply | Three Phase |
| Installation | Submersible |
| Impeller Type | Non-Clogging |
| Protection Class | IP68 |
| Application Media | Sewage, Wastewater, Drainage |
Suitable for:
Used for wastewater collection, transfer, and discharge.
Applications include:
Suitable for environments requiring corrosion-resistant pump solutions.
Used for:
Suitable for:
When selecting a submersible sewage pump, consider:
Select the pump according to actual wastewater volume.
This model provides:
100m³/h flow capacity
for medium to large wastewater transfer applications.
Head selection should consider:
This model provides:
25m head
for sewage lifting and medium-distance transfer.
For liquids containing:
stainless steel construction is recommended.
The 100WQ100-25-11KW Stainless Steel Submersible Sewage Pump combines:
It is suitable for industrial wastewater, municipal sewage, construction drainage, and demanding wastewater transfer applications.
By matching flow rate, head, and material selection with actual operating conditions, this pump provides a practical solution for long-term wastewater management systems.
